  • Type: Fixed shelf cantilever
  • Material: Cold rolled steel
  • Height: 2U
  • Depth: 13″
  • Capacity: 60 lbs
  • Warranty: 5 years
Overview

Product Overview

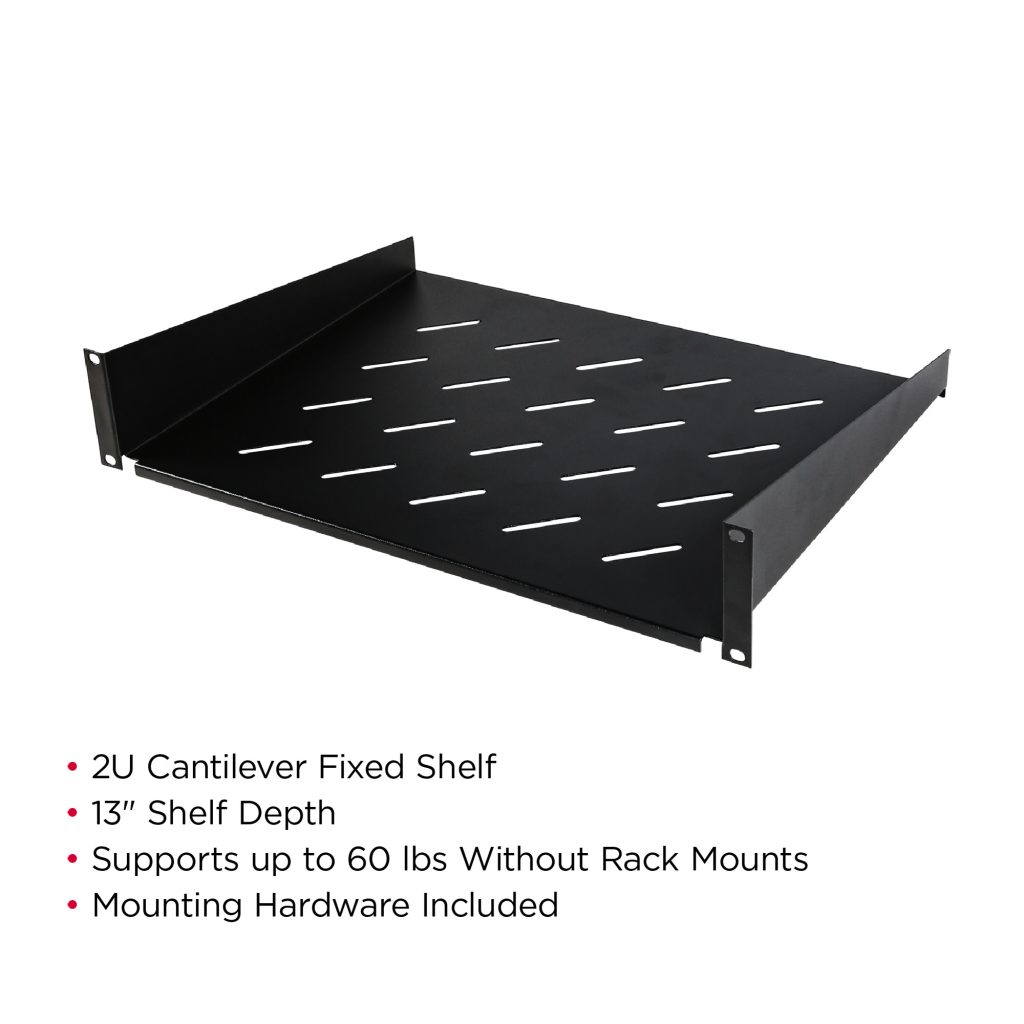

The CRA50001 is a 2U 13" deep cantilever fixed shelf designed to support up to 60 lbs of monitors and other IT equipment without rack mounts. Two shelves can be used back-to-back to create a deep shelf in a 2-post open frame rack. Required mounting hardware is included. The CRA50001 is covered by a 5-year limited warranty.

Product Features
Typical Applications
What's In The Box

Shelf, Mounting Hardware

WARNING

This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Specifications
Expand All
General
Load Capacity – Static 60 lb (27.2 kg)
Output
USB Charge Port No
Physical
Color Black
Installation Hardware Included
Material Cold Rolled Steel
Rack Height 2U
Dimensions

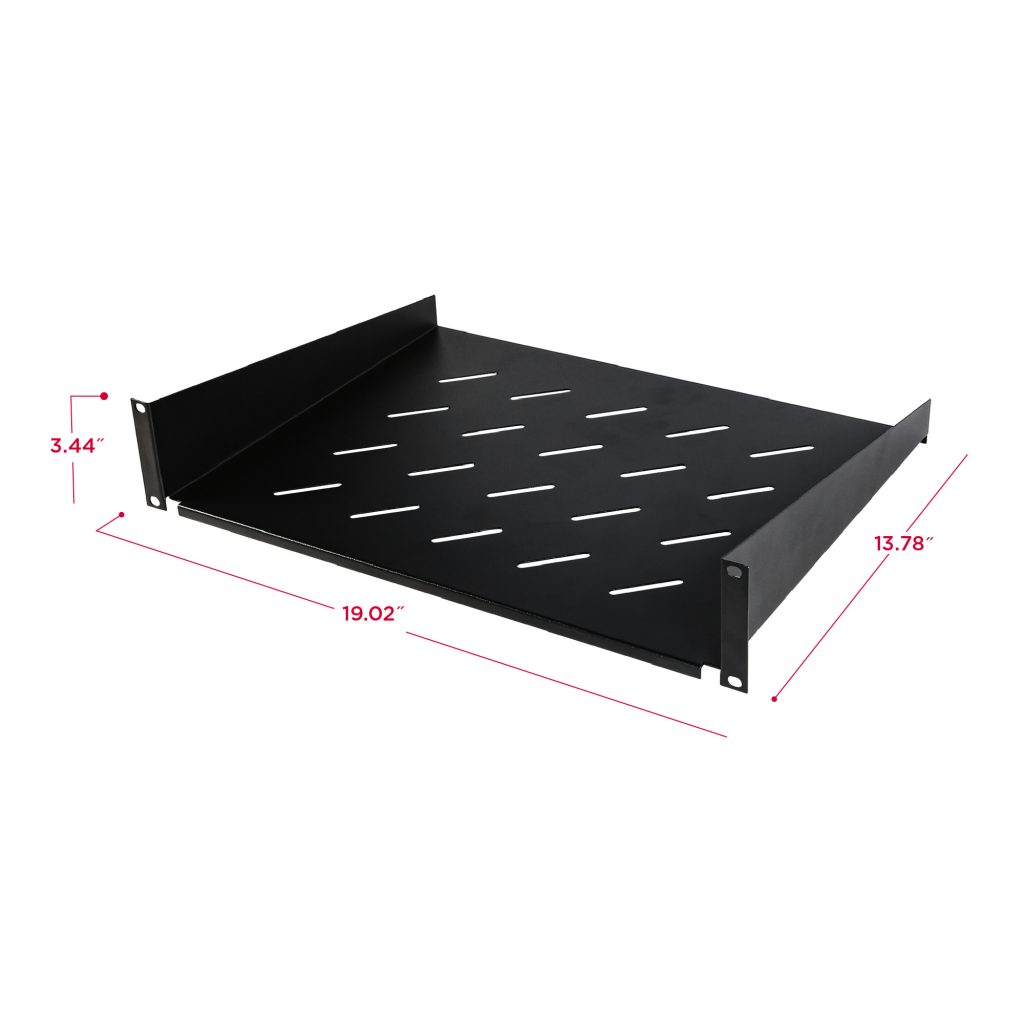

Physical Dimensions – (WxHxD) (cm) 48.31 x 8.74 x 35.0 (cm)
Physical Dimensions – (WxHxD) (in) 19.02 x 3.44 x 13.78 (in)
Physical Dimensions – (WxHxD) (mm) 483 x 87 x 350 (mm)
Physical Weight (kg) 1.87
Physical Weight (lb) 4.12
Dimensions – Shipping
Shipping – Weight (kg) 9.98
Shipping – Weight (lb) 22.0
Shipping Dimensions – (WxHxD) (cm) 38.74 x 10.8 x 50.17 (cm)
Shipping Dimensions – (WxHxD) (in) 15.25 x 4.25 x 19.75 (in)
Shipping Dimensions – (WxHxD) (mm) 387.35 x 107.95 x 501.65 (mm)
Certifications
Environmental RoHS Compliant
Warranty
Product Warranty 5 Year Limited Warranty
