Racks - Shelves

CRA50002

$203.00 MSRP
Purchase Online
Find a Solution Provider Locate a Partner
  • Type: Fixed shelf cantilever
  • Material: Cold rolled steel
  • Height: 1U
  • Depth: 13″
  • Capacity: 40 lbs
  • Warranty: 5 years
Overview

Product Overview

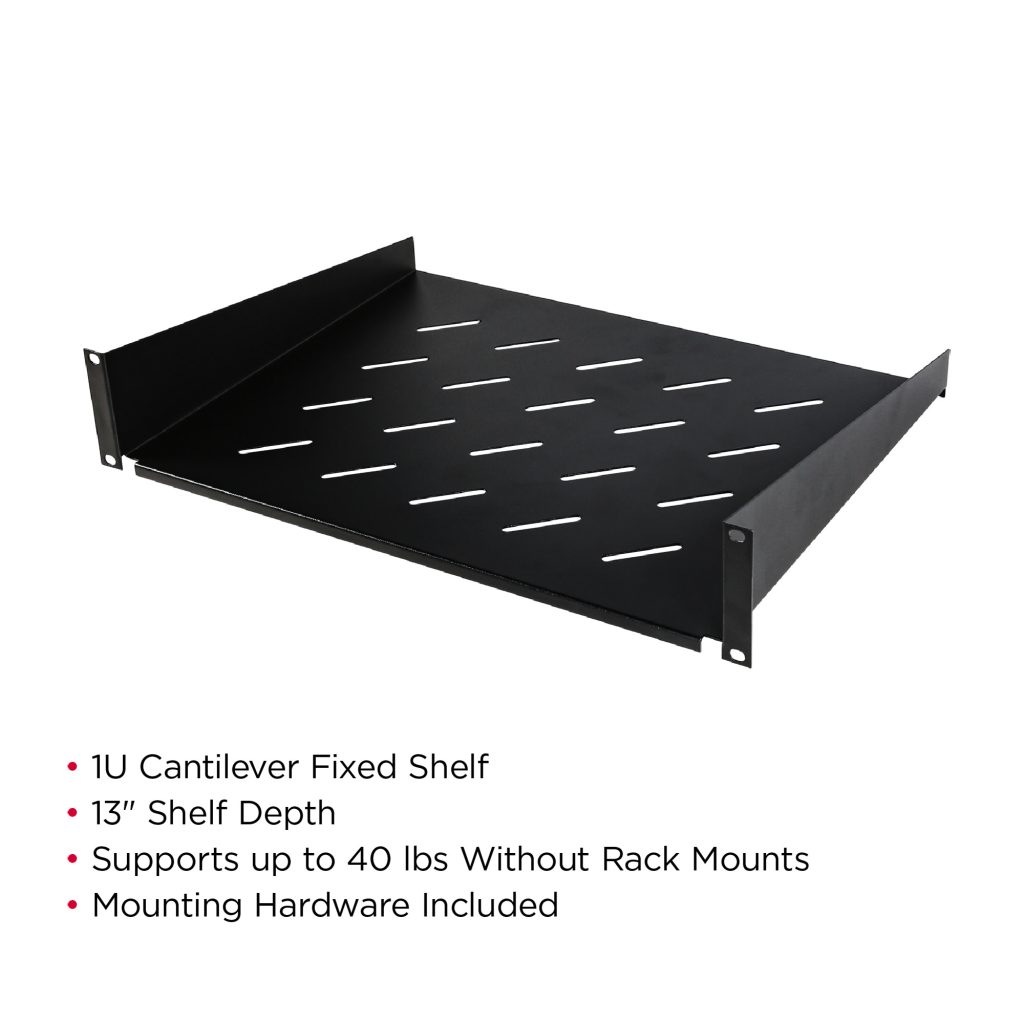

The CRA50002 is a 1U 13" deep cantilever fixed shelf able to support up to 40 lbs of monitors and other IT equipment without rack mounts. Two shelves can be used back-to-back to create a deep shelf in a 2-post open frame rack. Required mounting hardware is included. The CRA50002 is covered by a 5-year limited warranty.

Product Features
Typical Applications
What's In The Box

Shelf, Mounting Hardware

WARNING

This product can expose you to chemicals including Styrene (ABS), which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to http://www.P65Warnings.ca.gov.

Specifications
Expand All
General
Load Capacity – Static 40 lb (18.1 kg)
Output
USB Charge Port No
Physical
Color Black
Installation Hardware Included
Material Cold Rolled Steel
Rack Height 1U
Dimensions

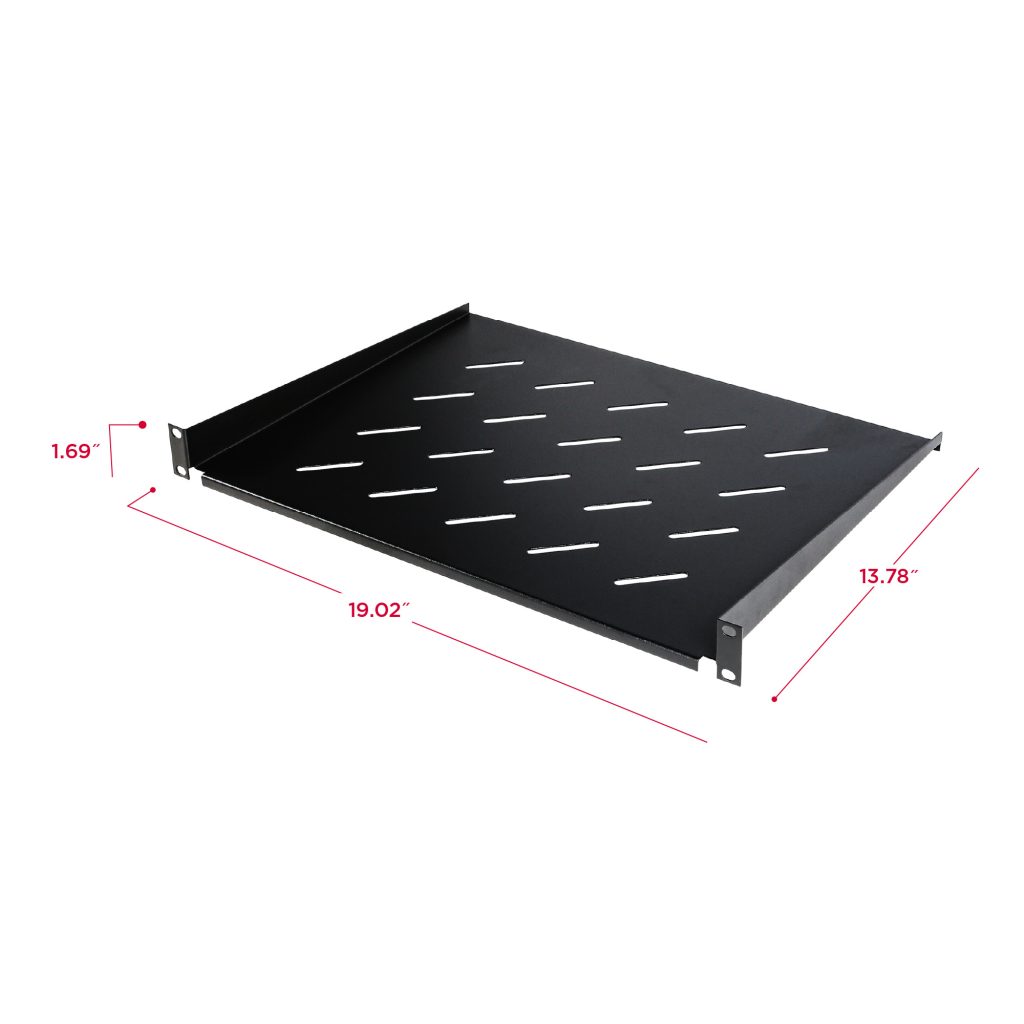

Physical Dimensions – (WxHxD) (cm) 48.31 x 4.29 x 35.0 (cm)
Physical Dimensions – (WxHxD) (in) 19.02 x 1.69 x 13.78 (in)
Physical Dimensions – (WxHxD) (mm) 483 x 43 x 350 (mm)
Physical Weight (kg) 1.66
Physical Weight (lb) 3.66
Dimensions – Shipping
Shipping – Weight (kg) 9.19
Shipping – Weight (lb) 20.25
Shipping Dimensions – (WxHxD) (cm) 37.47 x 6.35 x 50.17 (cm)
Shipping Dimensions – (WxHxD) (in) 14.75 x 2.5 x 19.75 (in)
Shipping Dimensions – (WxHxD) (mm) 374.65 x 63.5 x 501.65 (mm)
Certifications
Environmental RoHS Compliant
Warranty
Product Warranty 5 Year Limited Warranty
Downloads

CRA50002 DS

323.2KB
Support

Our Technical Support team will be happy help you with technical questions during business hours.

Our technical support team is available between 6AM and 9PM CST
Monday through Friday
Visit our Support Area

Submit a Support Ticket
Series
 Model DescriptionRack HeightLoad Capacity MSRP
 CRA50003 19" 1U sliding shelf, 25" (650mm) deep, 132lbs (60kg) capacity, 5 year warranty1U132 lb $851.00
 CRA50005 19" 1U heavy duty fixed shelf, 25" (650mm) deep, 175lbs (80kg) capacity, for rack enclosure, 5 year warranty1U175 lb $330.00
 CRA50006 19" 1U heavy duty 22"-40" depth adjustable shelf for 4-post open-frame rack, 135lbs (60kg) capacity, 5 year warranty1U135 lb $395.00
 CRA50002 19" 1U cantilever shelf, 13" (350mm) deep, 40lbs (18kg) capacity, 5 year warranty1U40 lb $203.00
 CRA50004 19" 1U sliding keyboard shelf, 19.6" (500mm) deep, 45lbs (20kg) capacity, 5 year warranty1U45 lb $621.00
 CRA50001 19" 2U cantilever shelf, 13" (350mm) deep, 60lbs (27kg) capacity, 5 year warranty2U60 lb $227.00
